Oscillation angle
| Symbol | φ0 |
|---|---|
| Unit | ° |
| Attribute-ID | skiving_cutter_oscillation_angle |
| Numeric ID | 201852 |
| Value Type | PMTechValue |

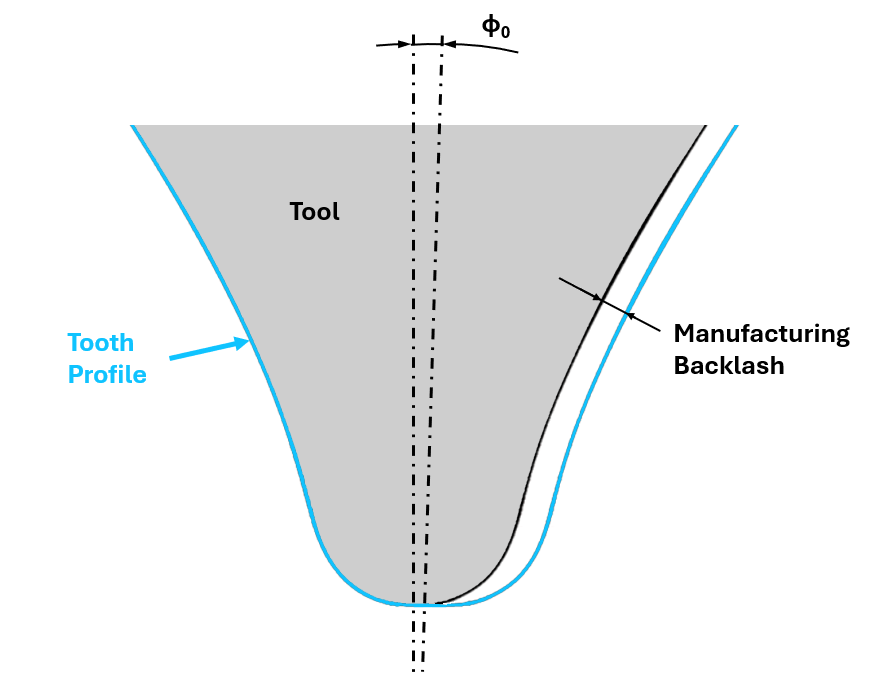

The oscillation angle Φ0 describes the rotational flank clearance between the tool and the workpiece in the skiving process. This rotational flank clearance is required in order to machine the left and right flanks in separate operations.
