Form of helix angle modification
| Symbol | - |
|---|---|
| Unit | - |
| Attribute-ID | sekor_hcb_form |
| Numeric ID | 4131 |
| Value Type | PMString |
Specification of whether the tooth trace angle deviation is determined according to the DIN or VDI form.
Straight toothing & helical toothing with positive helix angle:
The tooth trace modifications are equally interpreted according to VDI and DIN 3960.
Helical toothing with negative helix angle:

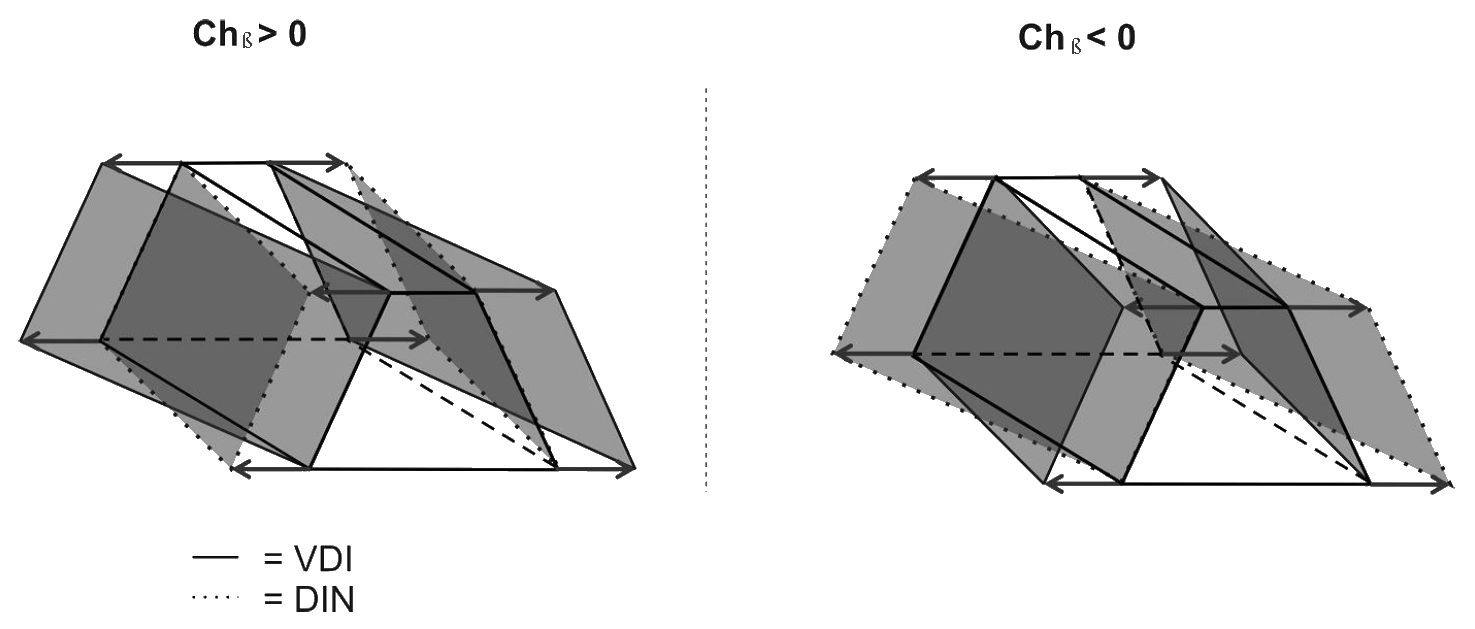

Modifications are interpreted as follows:
By definition, the modification will be calculated identically by definition according to VDI (2607 and 2612) and DIN (3960) and ISO 21772 (draft) for spur gears. A positive modification corresponds to a right-hand helix deviation; a negative correction corresponds to a left-hand matrix deviation.
