Young's modulus of the first clamped part
| Symbol | EP1 |
|---|---|
| Unit | N/mm² |
| Attribute-ID | vdi_2230_young_s_modulus_of_the_first_clamped_parts |
| Numeric ID | 12165 |
| Value Type | PMTechValue |

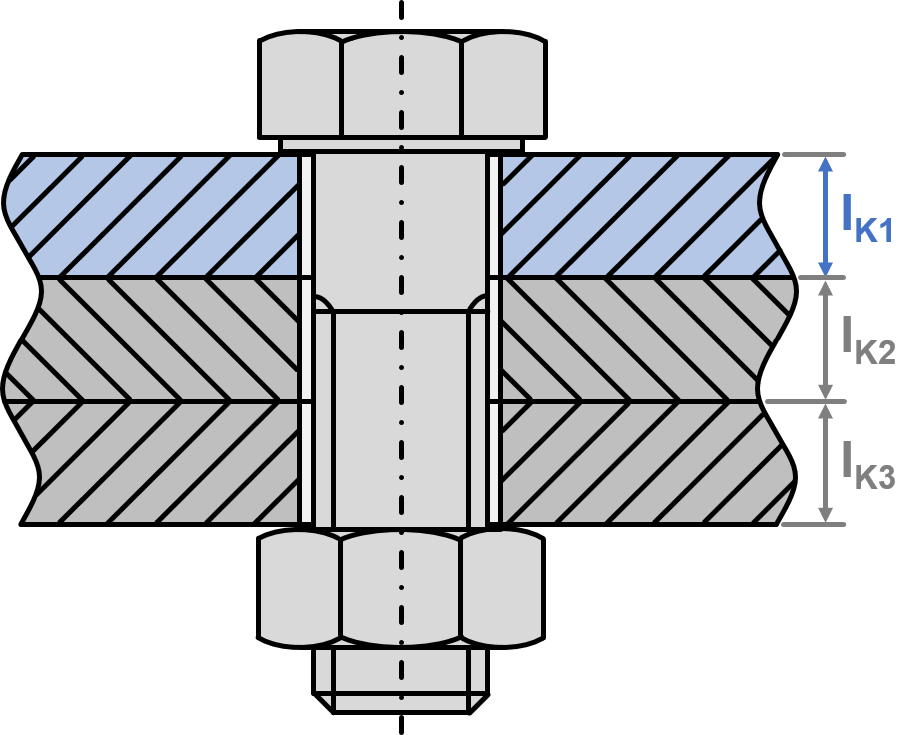

The 1st plate section is described by the following attributes:
The clamping length of the first plate lK1 corresponds to the thickness of the component in the clamped region.
The Young's modulus of the first clamped part EP1 is required for the calculation of the plate resilience.
