Radial damping
| Symbol | - |
|---|---|
| Unit | s kN/µm |
| Attribute-ID | BEKS |
| Numeric ID | 1979 |
| Value Type | PMTechArray |

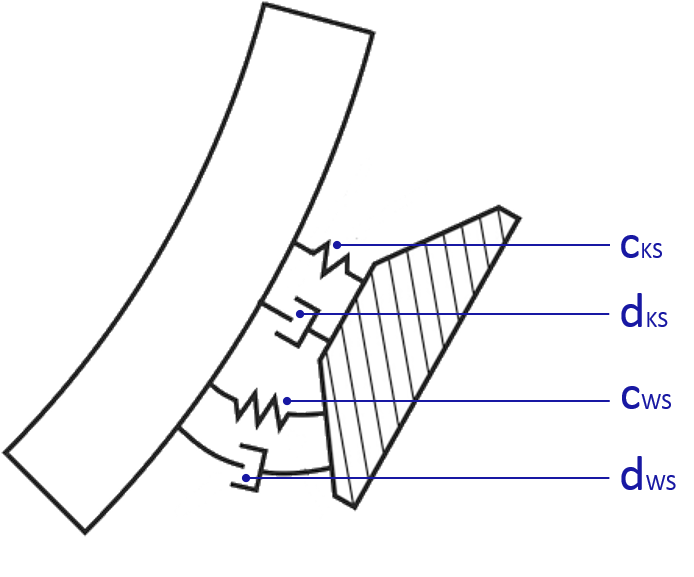

Specification of the radial damping of the segment support.
| cKS | kN/mm | Radial stiffness |
| dKS | skN/mm | Radial damping |
| cWS | kN/rad | Angular stiffness |
| dWS | skNm/rad | Angular damping |
