Base
| Symbol | b |
|---|---|
| Unit | - |
| Attribute-ID | tip relief base |
| Numeric ID | 2671 |
| Value Type | PMDouble |

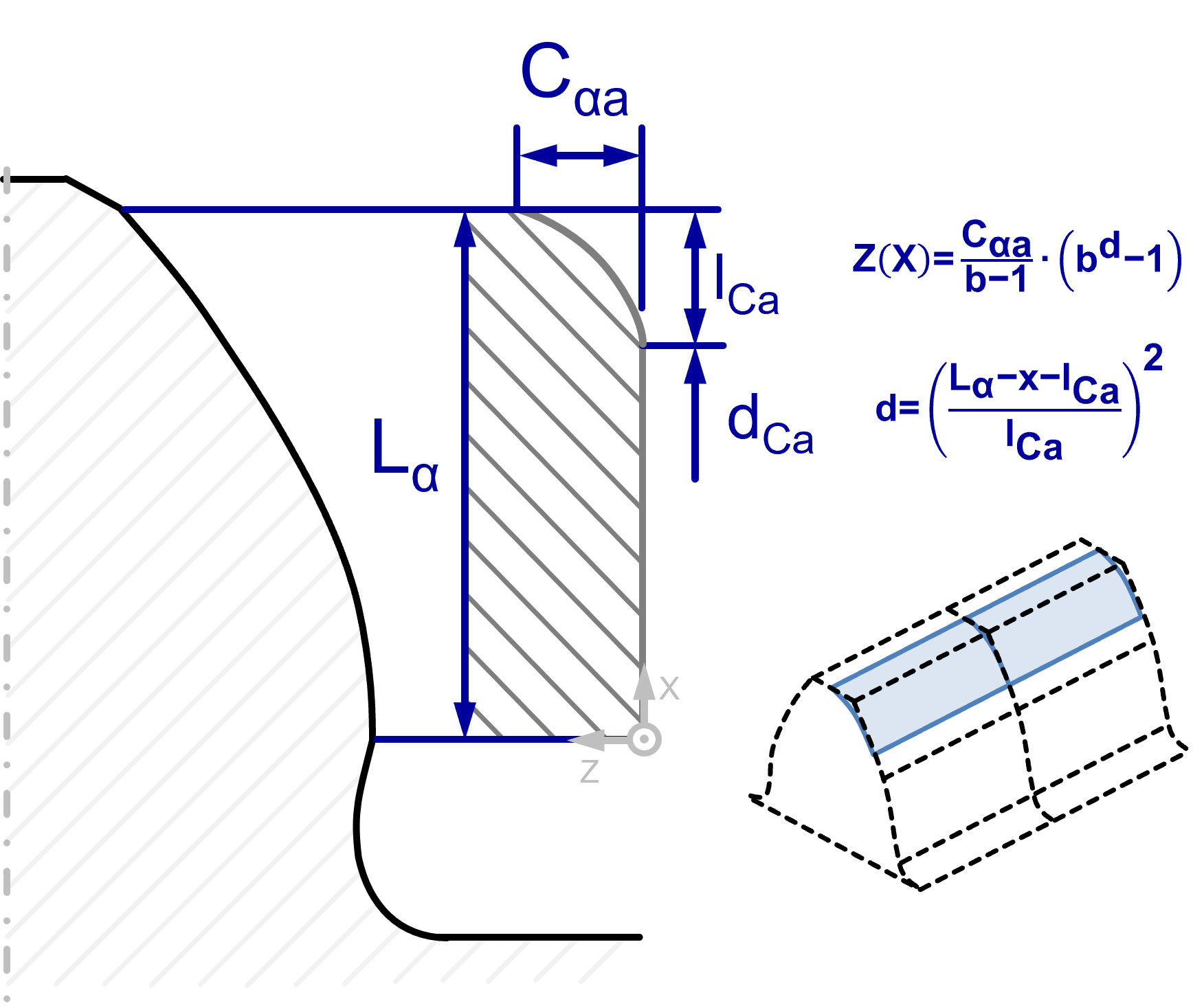

The base b of the exponential relief is specified here. If no entry is provided, Euler's number e=2.71828 is used for the default value of the base b.
| Cαa | Amount of tip relief |
| lCa | Length of tip relief |
| b | Base |
| X | Coordinate in X direction |
| Z | Tip relief in Z direction |
| Lα | Defined length of the modification |
